MAX629

Bus Connect

Flexible solution

Rack mount or Table top

Replaces ARINC 629 couplers (CMC)

The MAX629 Bus Connect panel is a 19 inch rack mount or table top device to connect together ARINC 629 Line Replacement Units (LRUs) without the need for ARINC 629 couplers.

This is the ideal solution for tests & simulation benches.

How does it works? Multiple LRUs are on the same bus when they are connected to the MAX629 Bus Connect front panel. There is no need to use couplers. Bus terminaisons are also built in. It is that easy!

Specifications

Control type

No control, passive unit

Supported signals

ARINC 629 signals
Interconnect port, required to daisy chain multiple MAX629 Bus Connects

Physical dimensions and weight

Height: 1U or 45 mm or 1.75 in
Width: 442 mm or 17.40 in
Depth: 238 mm or 9.37 in
Weight: 2.5 kg or 5.5 lbs

Environmental

Standard Operating Temperature: 10°C to 35°C
Storage Temperature: -25°C to 45°C
Relative Humidity for operation: 0 to 90% (non-condensing)

Electrical

Line voltage: 100-240V AC
Frequency: 50Hz to 60Hz

Power consumption

Idle power: 5 W
DC voltage: 12V

Features

Replaces up to six (6) ARINC 629 Current Mode Couplers (CMCs)
Six (6) ARINC 629 Connectors
Daisy-chain capability to connect more ARINC 629 devices
Ideal for use with MAX Technologies ARINC 629 test and simulation products
Replacement for expensive ARINC 629 couplers in labs
Plug & Play technology, no configuration required

Restrictions

Should only be used in labs, on the ground
Must never be used for life critical tests
All LRUs or ARINC 629 Analyzers / Simulators must connect to the bus using the MAX629 Bus Connect. Mixing Current Mode Couplers and MAX629 Bus Connect is not allowed.

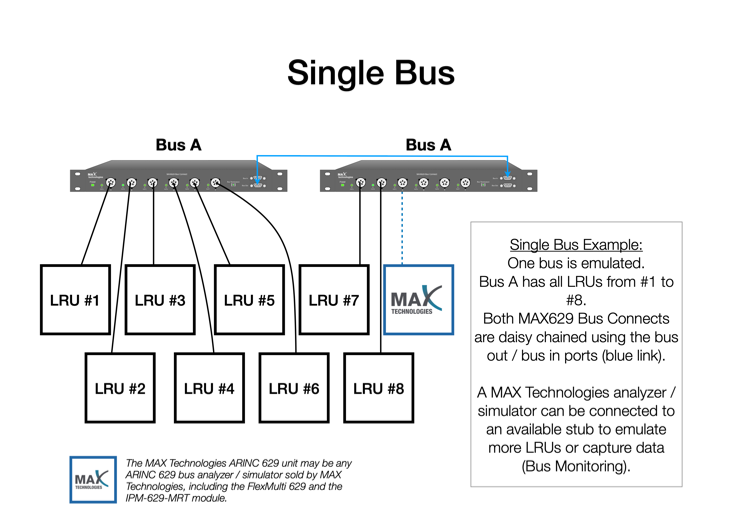

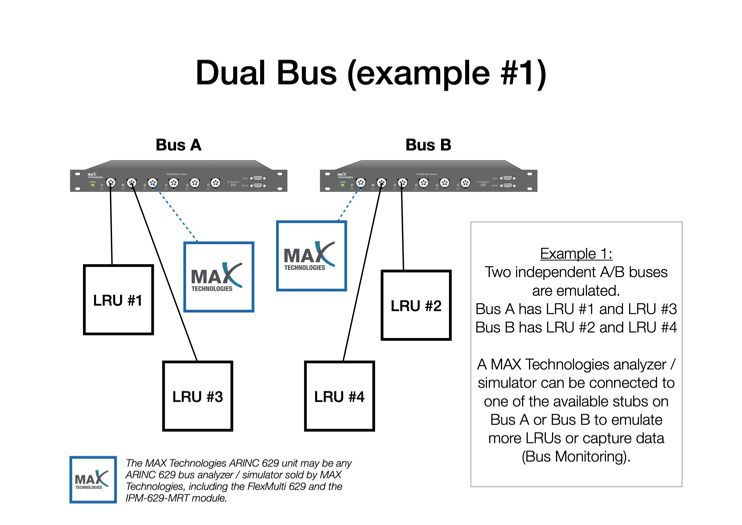

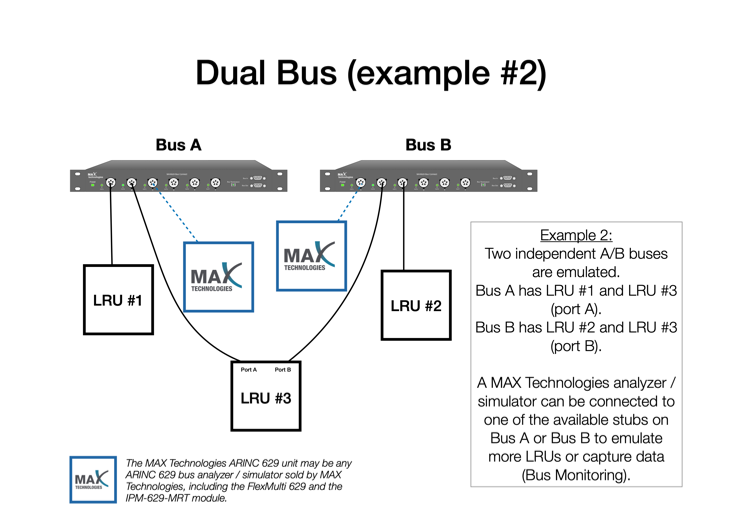

Application Examples
